Ozone Generator SBW-10 – 2500 mg/h | Dry Air, Waterproof
Ozone Generator SBW-10 – 2500 mg/h | Dry Air, Waterproof
Couldn't load pickup availability

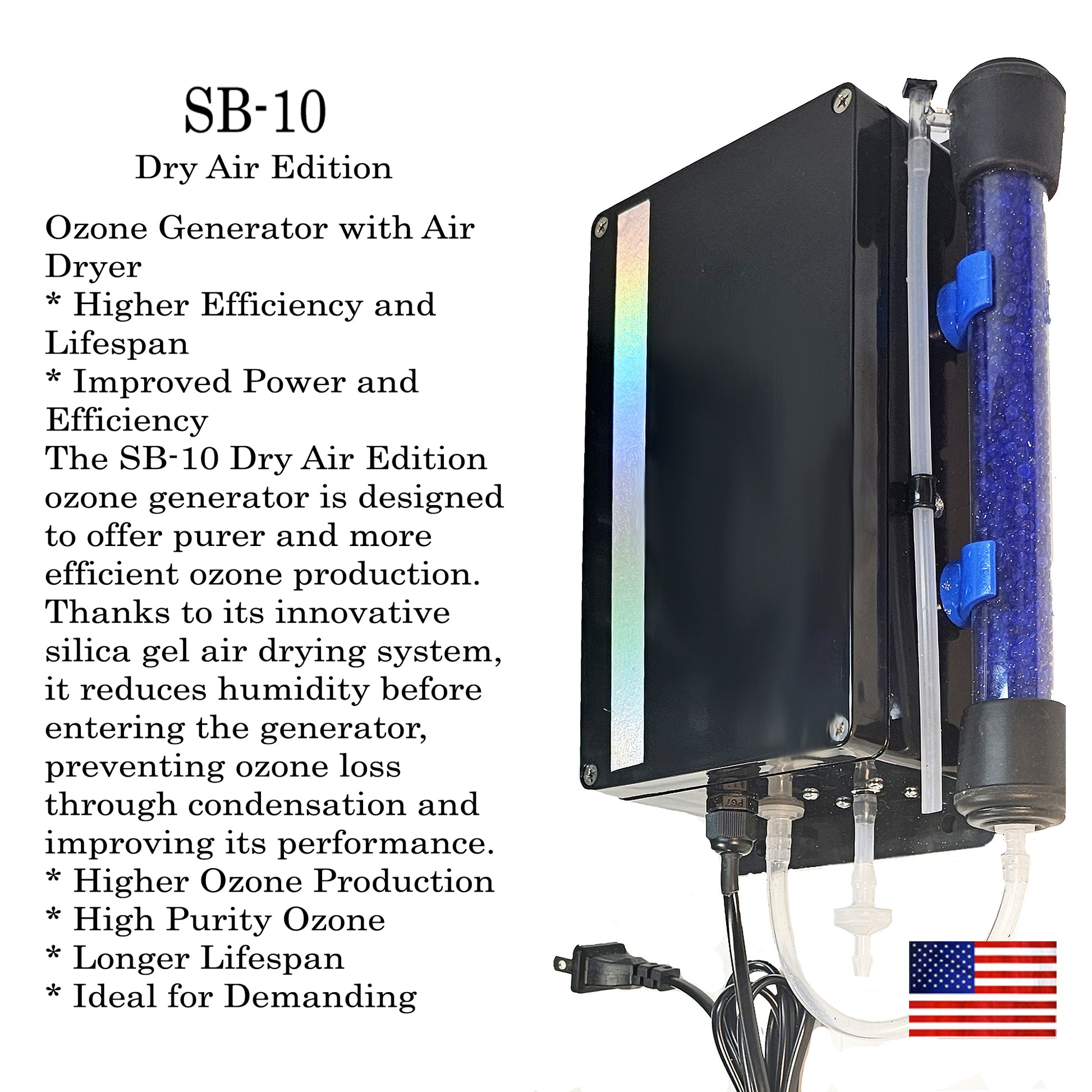

SBW-10 Ozone Generator – Dry Air Edition
Engineered for serious water treatment. The SBW-10 delivers 2500 mg/h of pure ozone output to keep ponds, pools, spas, and drinking water systems clean, clear, and safe — up to 7,500 gallons.
Why the Dry Air Edition?

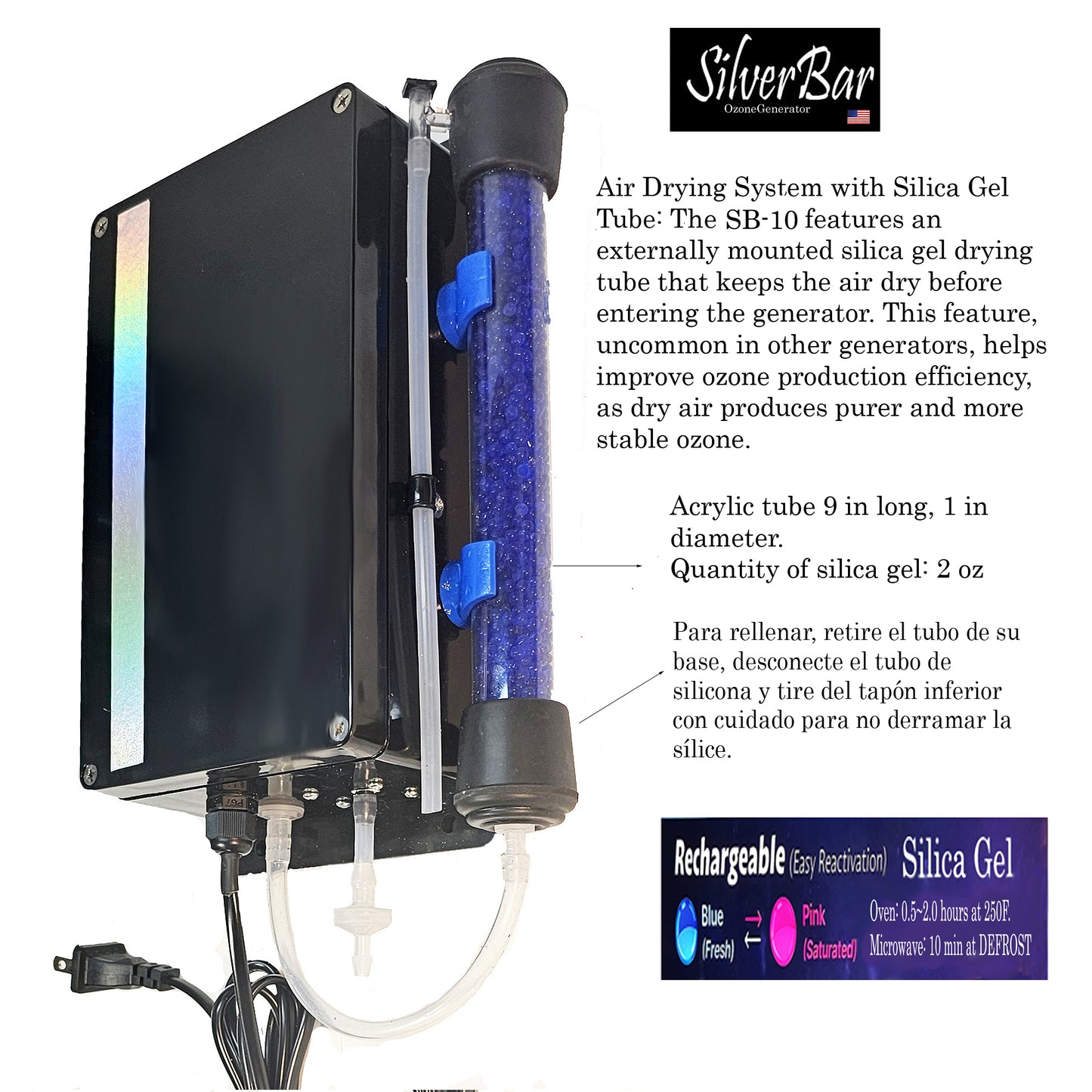

Our integrated silica gel air dryer boosts ozone production efficiency by 30–50% and significantly extends the unit's lifespan — a critical advantage in humid environments.
Key Features
- 2500 mg/h ozone output — high-performance water purification

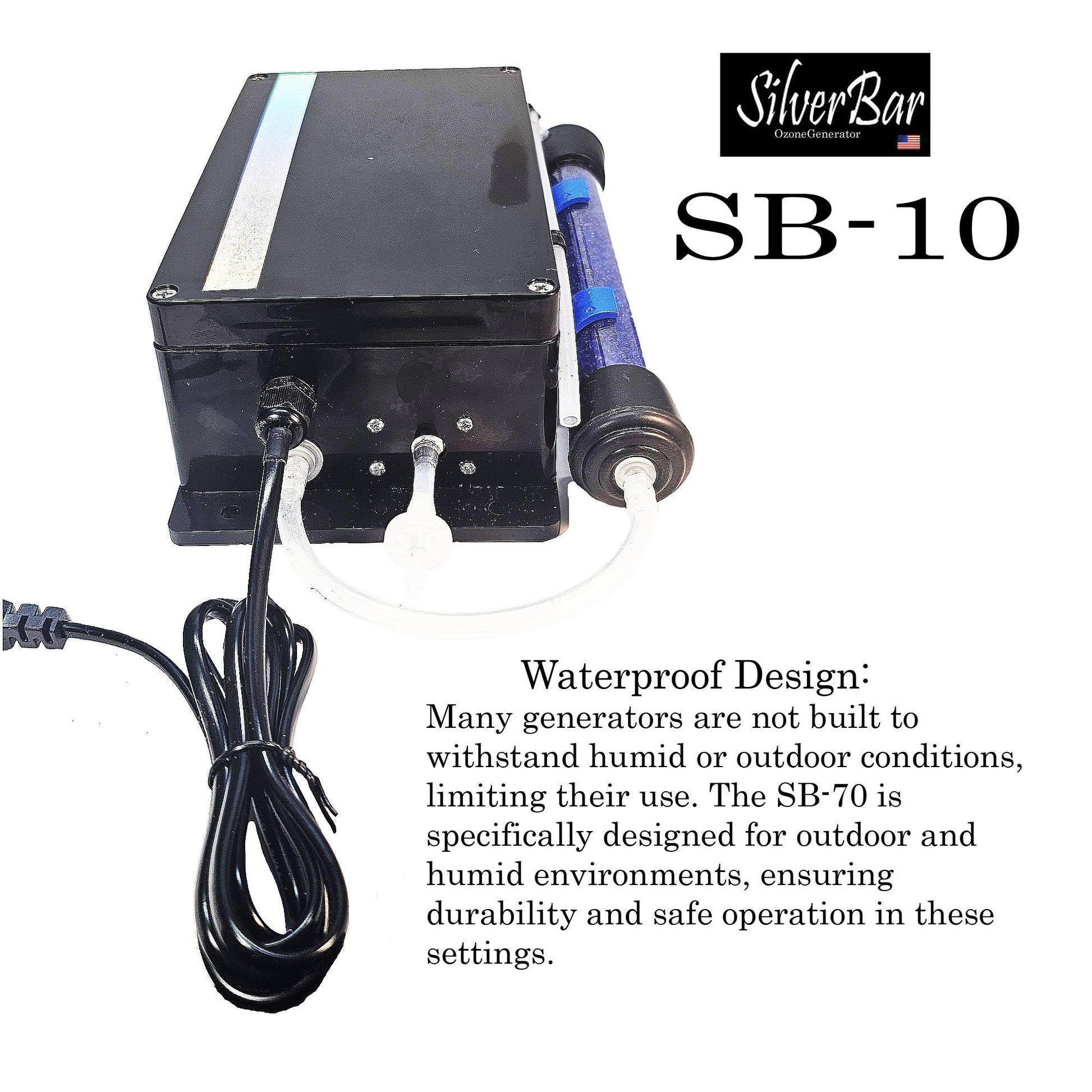

- Waterproof & fireproof housing — withstands pressure-free water jets
- Ultra-low power: only 15W at 110V–60Hz
- Regenerable silica gel dryer — easy, low-cost maintenance
- Ideal for: ponds, pools, spas, aquariums, and drinking water
Technical Specifications
| Brand | JL ProDevices / Silver Bar |
| Model | SBW-10 |
| Ozone Output | 2500 mg/h |
| Generation Type | Corona Discharge |
| Power Consumption | 15W |
| Operating Voltage | 110V – 60Hz |
| Internal Air Pump | 3 L/min |
| Operating Cycle | 50 min ON / 30 min OFF (automatic). Can be customized at factory — contact seller. |
| Drying System | Regenerable silica gel (2 oz) |
| Protection | Water resistant — not submersible |
| Safety | Auto shut-off & overheat protection |
| LED Indicators | Power On / Active |
| Dimensions | 6 x 4 x 2 inches |
| Weight | 2 lb |
| Color | Black |
| Recommended Installation | Wall-mounted, above water level. Can be used with diffuser stone or venturi tube for greater efficiency. |
Pool Compatibility
The SBW-10 is designed for residential and small-to-medium pools up to 7,500 gallons (~28,000 liters). It works effectively with:
- Residential backyard pools
- Saltwater pools — complements the salt chlorination system
- Freshwater pools — as a primary or complementary treatment
- Spas and jacuzzis
- Ponds and water features
Not recommended for large commercial or Olympic-size pools with high bacterial loads (those require generators with 5,000–10,000 mg/h output or higher).
What's Included
- Ozone Generator SBW-10
- Air dryer with silica gel (2 oz)
- Silicone tube
- Check valve
- Diffuser stone
Usage Tips

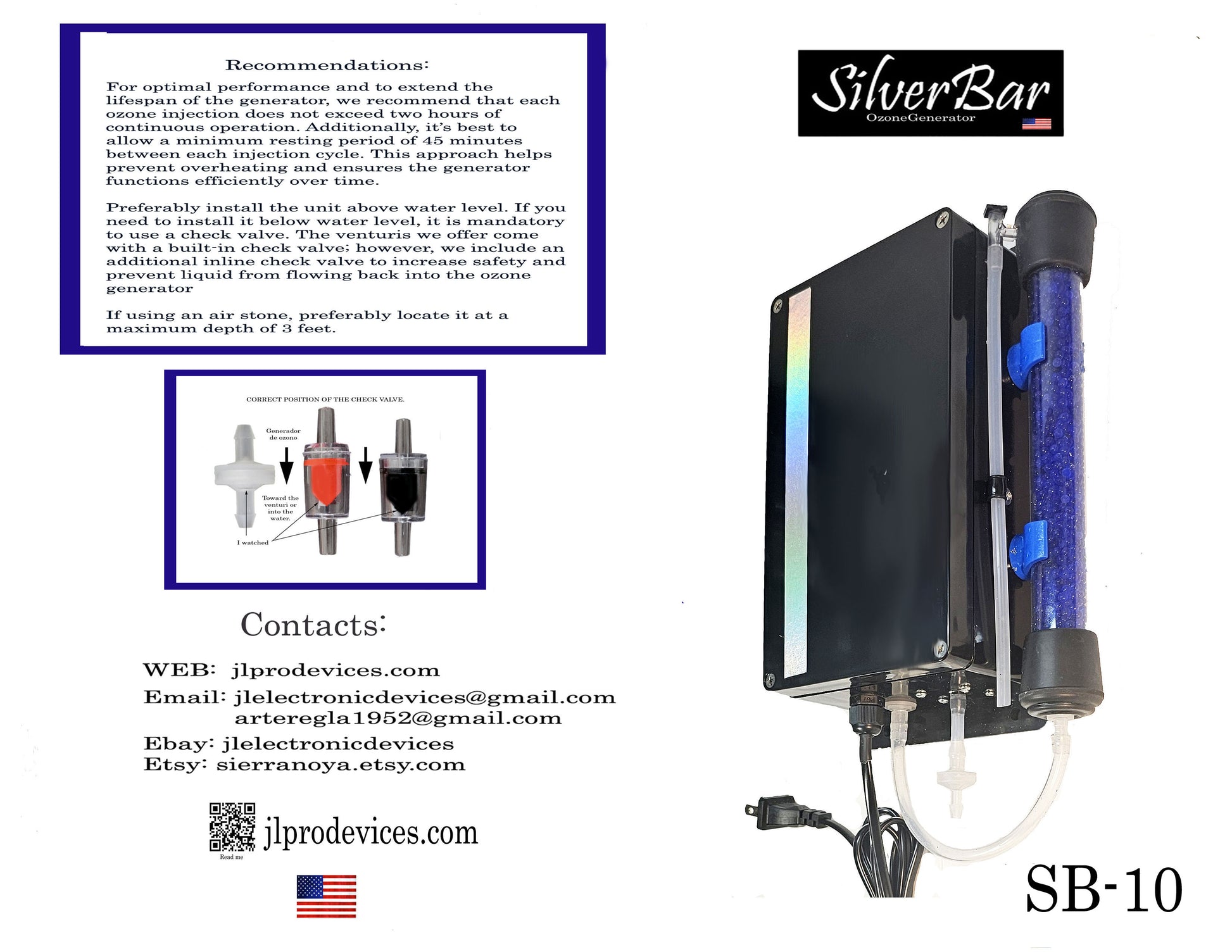

For every 2 hours of continuous use, allow 30 minutes of rest to maximize lifespan. Not submersible. Preferably install wall-mounted above water level. Can be connected to a venturi tube for greater ozone injection efficiency.
Warranty & Support
Spare parts available directly through JL ProDevices. We stand behind every unit we sell.
