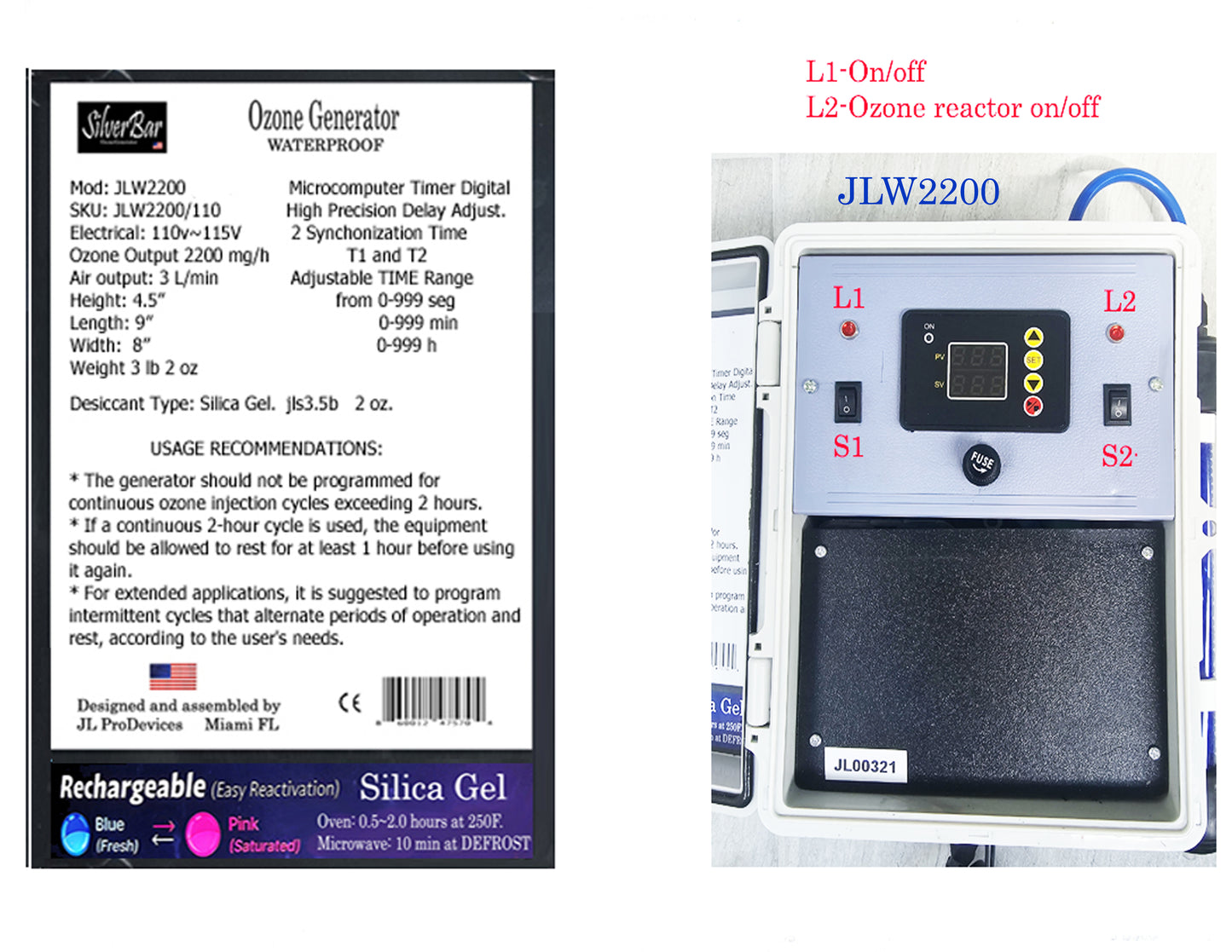

JLW-2200 Ozone Generator – 2200 mg/h | Waterproof, Outdoor, Automatic Injection

¿Agua turbia, olores, o químicos en exceso? El JLW-2200 lo resuelve.

El generador de ozono JLW-2200 produce 2,200 mg/h de ozono para desinfectar, oxidar y clarificar el agua de piscinas, spas, tanques y acuarios — sin depender únicamente del cloro. Diseñado y ensamblado en EE.UU., con kits modulares para cualquier instalación.

1. What is the JLW-2200?

The JLW-2200 is a professional ozonation system designed for swimming pools, spas, tanks, and water treatment applications.

It produces 2,200 mg/h of ozone, providing efficient and controlled disinfection, oxidation, and water clarity enhancement.

Its modular design allows it to adapt to various real-world hydraulic configurations, facilitating field installation.

Designed and assembled in the USA.

2. Venturi Injection System (Pro and Advanced Kits)

The system utilizes a Venturi injector to efficiently mix ozone with water. It operates via differential pressure (ΔP), generating a vacuum that draws the ozone into the hydraulic line.

Advantages of the Venturi system:
High ozone dissolution efficiency
Reduced off-gas loss
Faster oxidation
Requires no external air pump within the hydraulic configuration

The Direct Diffusion Kit version does not use a Venturi; instead, it incorporates an internal 5 L/min air pump, allowing for direct injection down to a depth of approximately 3 feet.

3. Hydraulic Requirements

For the JLW-2200 to function correctly, the Venturi system must operate within the following range:

Recommended ΔP: 0.25 – 0.6 bar (4 – 9 psi)

Application based on manifold size:
1" → Spas, hot tubs, and small systems
1.5" → Standard residential pools
2" → Large residential pools or higher-flow systems (for use as a supplementary treatment)

✔ Important: In 2" systems, the JLW-2200 is recommended as a continuous support system, not as the primary source in high-demand applications.

Hydraulic Requirements for Venturi Injection (JLW2200 – 2200 mg/h)

1" Manifold | 1" Venturi
Typical Flow Rate: 3–5 m³/h | Recommended ΔP: 0.25–0.4 bar | Minimum Pressure: ≥1.3 bar | Application: Spas and small pools

1.5" Manifold | 1" Venturi
Typical Flow Rate: 5–10 m³/h | Recommended ΔP: 0.25–0.6 bar | Minimum Pressure: ≥1.6 bar | Application: Residential pools

2" Manifold | 1" Venturi
Typical Flow Rate: 8–15 m³/h | Recommended ΔP: 0.3–0.6 bar | Minimum Pressure: ≥1.8 bar | Application: Medium-sized pools

✔ Installation Recommendation: Configure in a bypass arrangement, allowing the flow through the Venturi to be adjusted via valves to achieve the appropriate vacuum level.

4. Field Adjustment Procedure
Fully open all valves → Progressively restrict the main line → Increase flow through the Venturi → Verify stable suction → Adjust until hydraulic equilibrium is achieved → Leave the system operating via the timer.

5. Operating Conditions in Real-World Environments
The system is designed to operate under variable conditions: fluctuating pressures, varying pipe diameters, humid environments, and continuous operation via programmed cycles.

6. Installation Recommendations

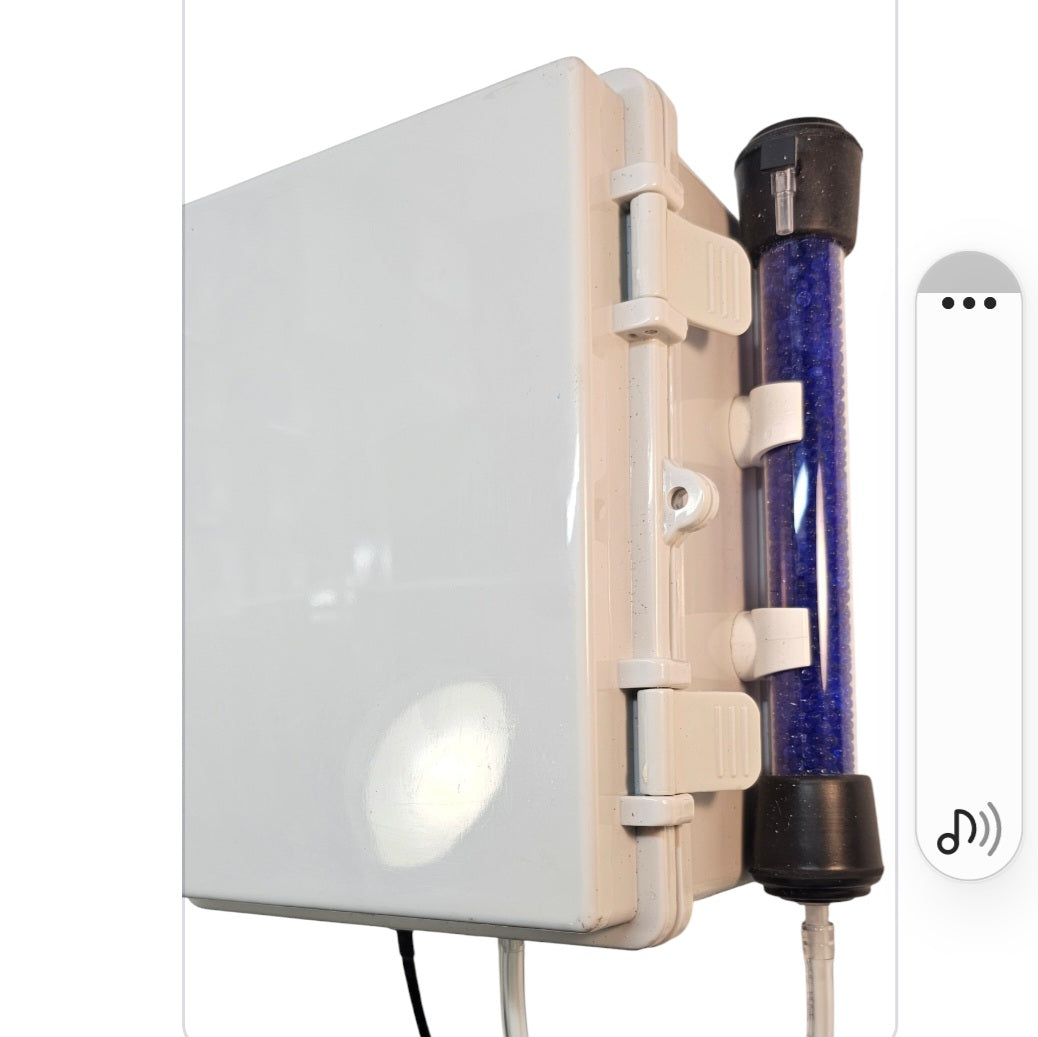

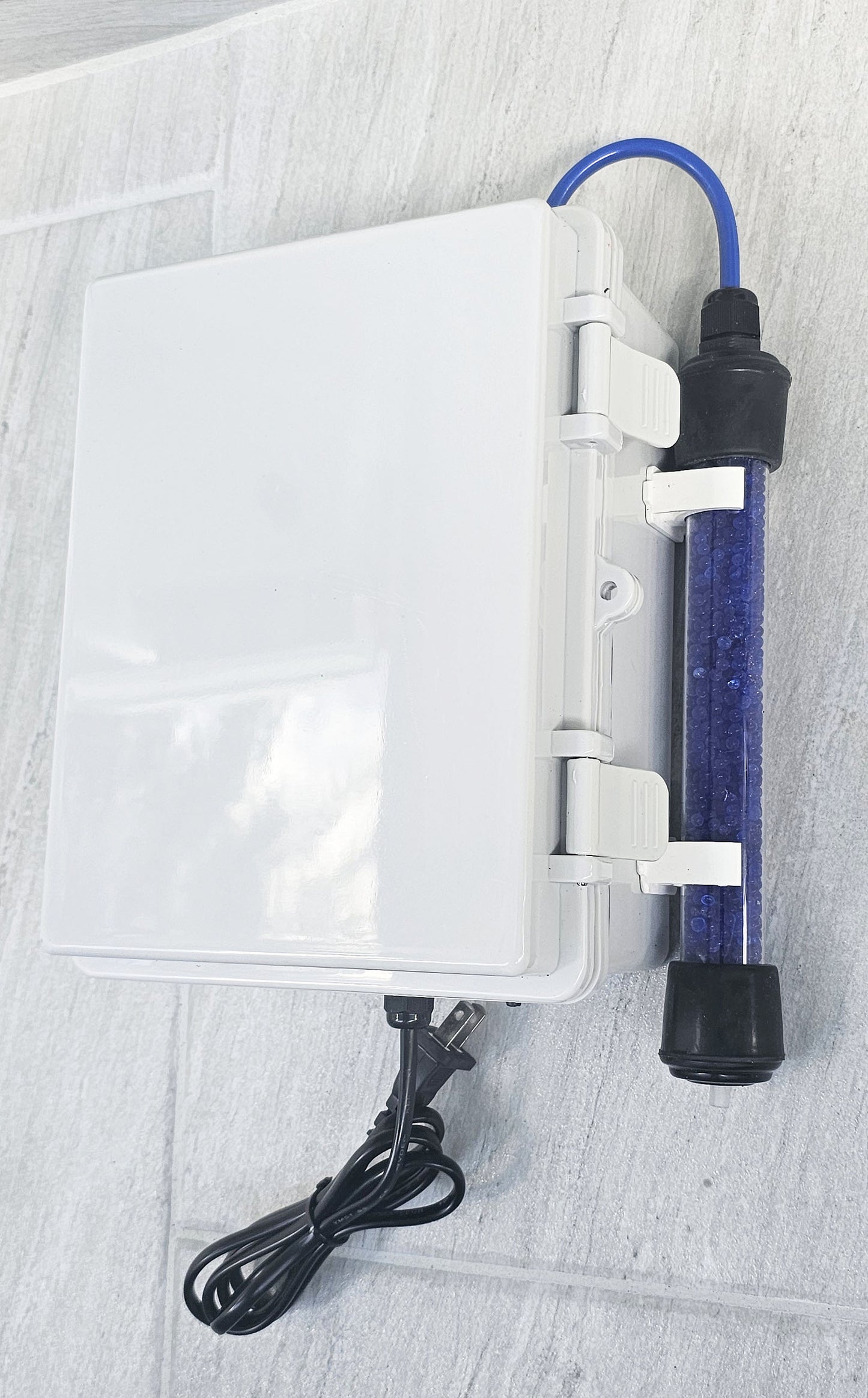

Use an air dryer (included in Pro and Advanced versions). Keep air lines as short as possible. Installation of a check valve (non-return valve) is mandatory. Ensure stable hydraulic pressure. Prevent leaks to maintain efficient vacuum.

7. System Differentiation
The JLW2200 is not merely a generator. It is a complete ozonation system, designed for real-world installations where multiple hydraulic and operational variables come into play.

8. Available Kits

Basic Kit — 2200 mg/h Generator + Digital Timer + Accessories + Check Valve
Applications: Spas, Jacuzzis, Small Tanks, Aquariums

Pro Kit — All of the above + Dual Air Drying System
Applications: Small/Medium Pools, Commercial Spas, Humid Climates

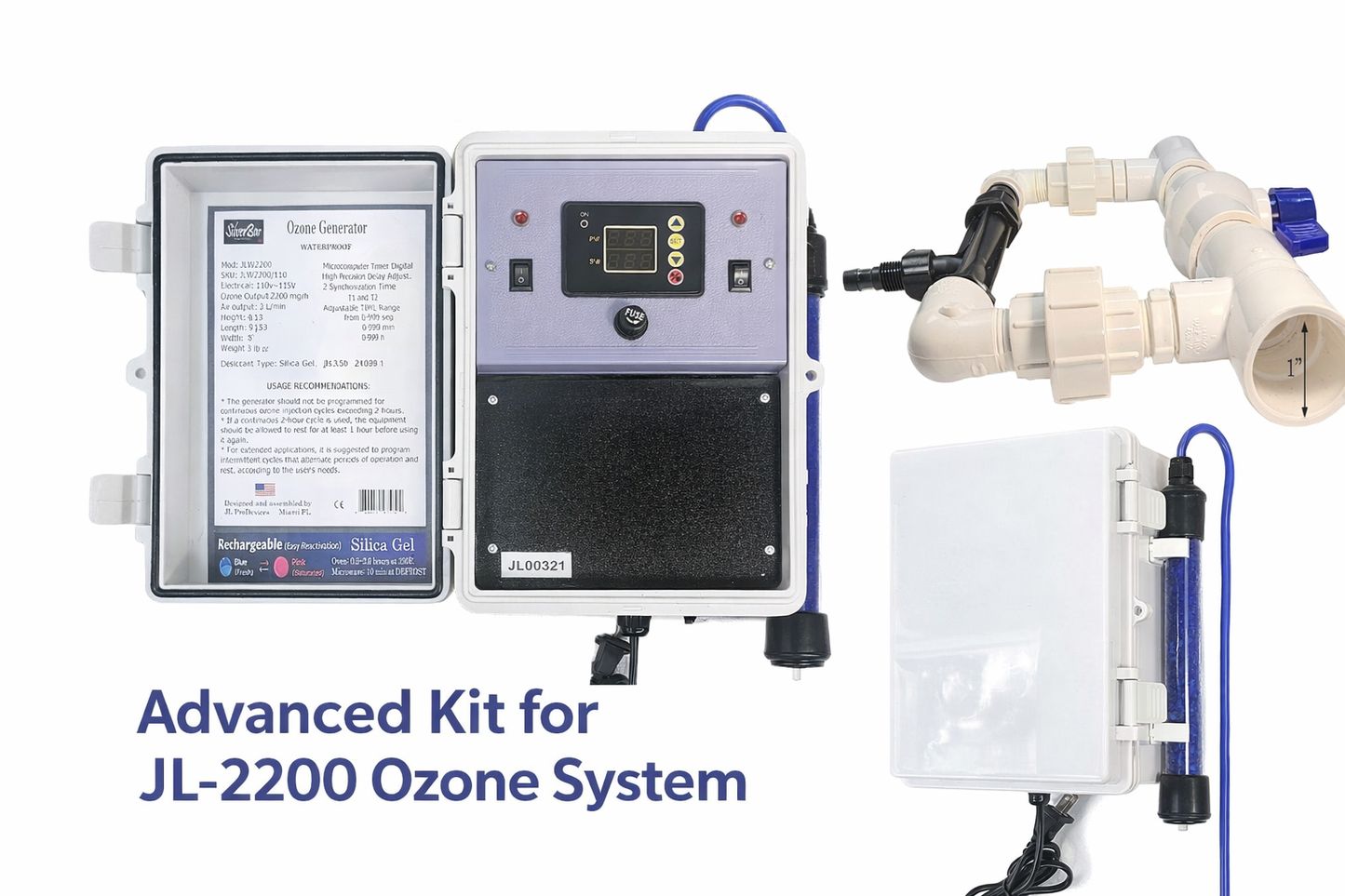

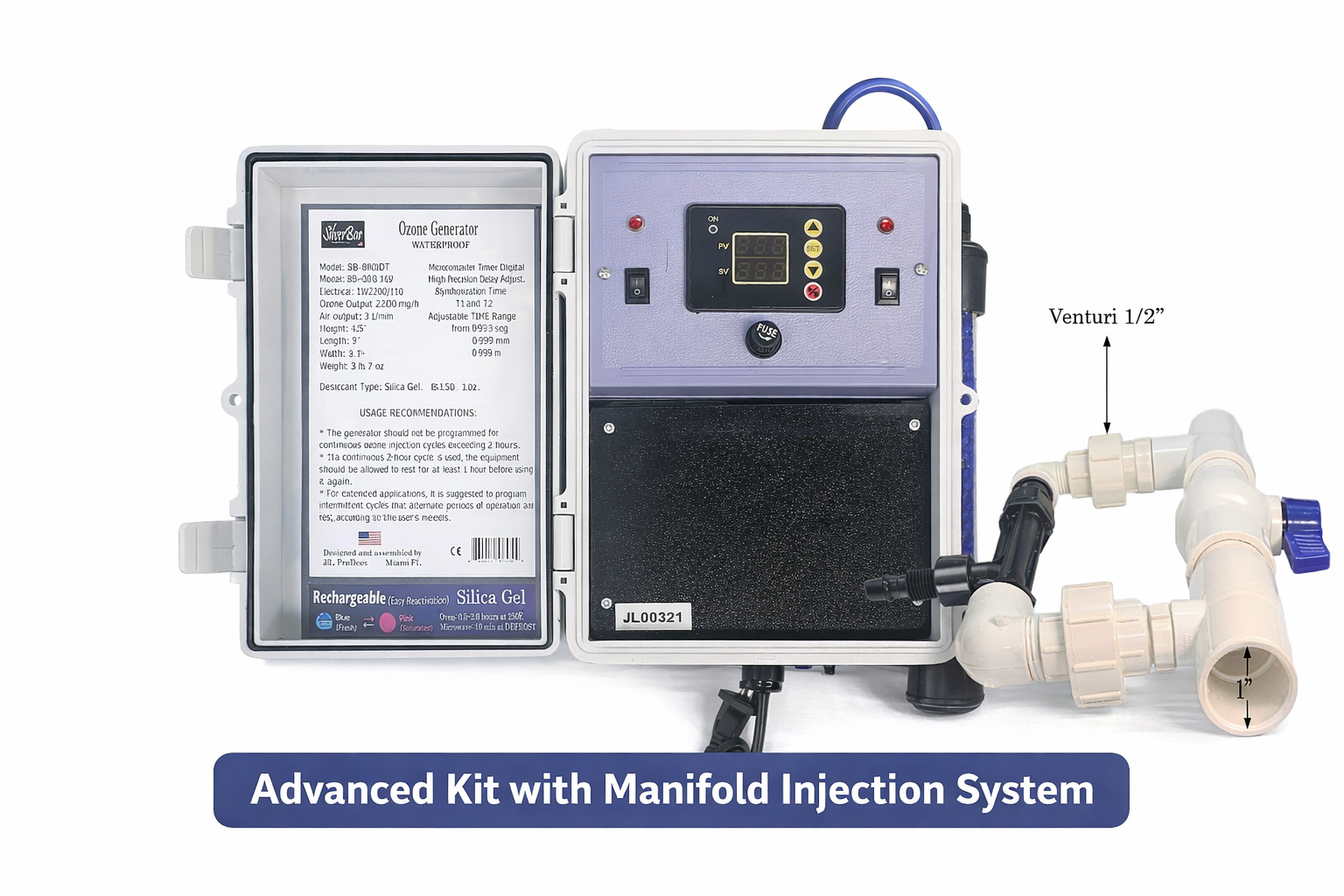

Advanced Kit— All of the above + Manifold System with Venturi (1", 1.5", 2")
Applications: Residential Pools

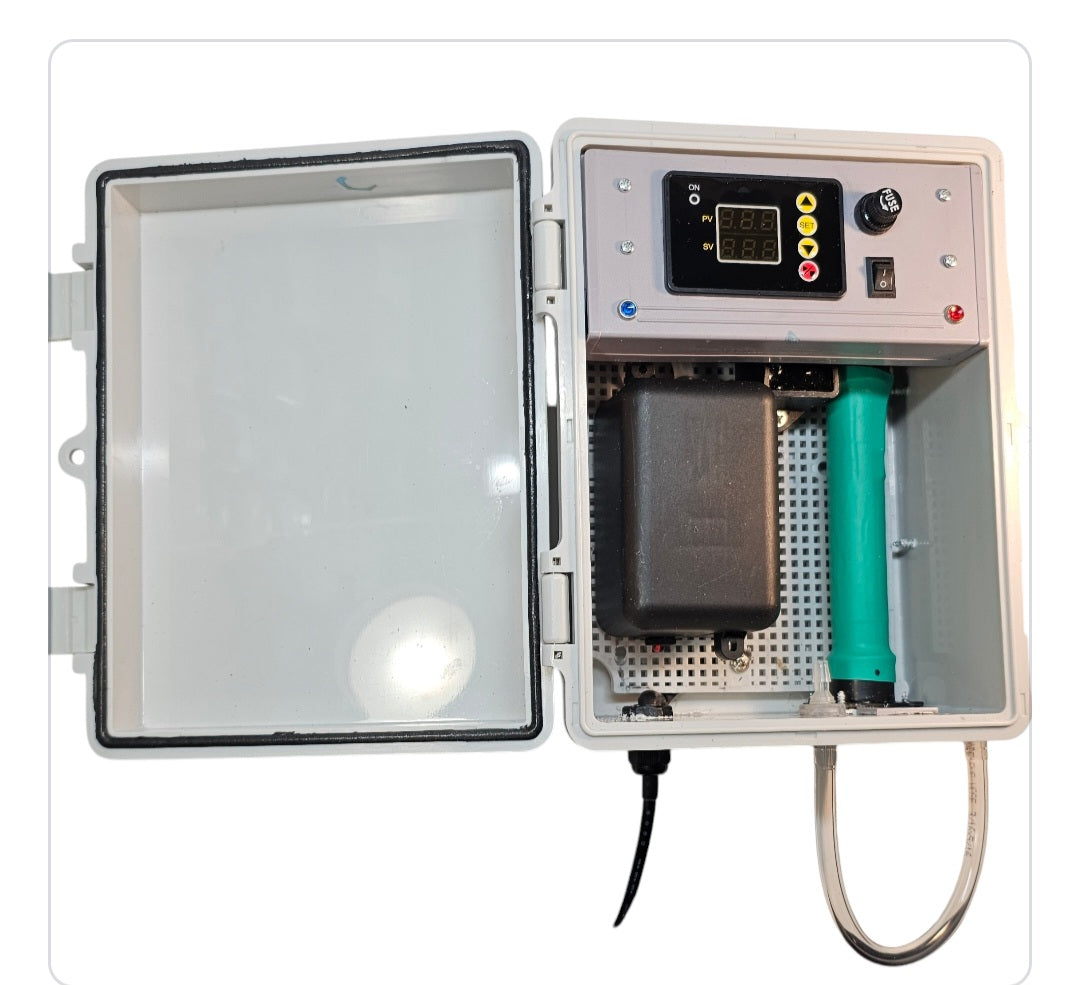

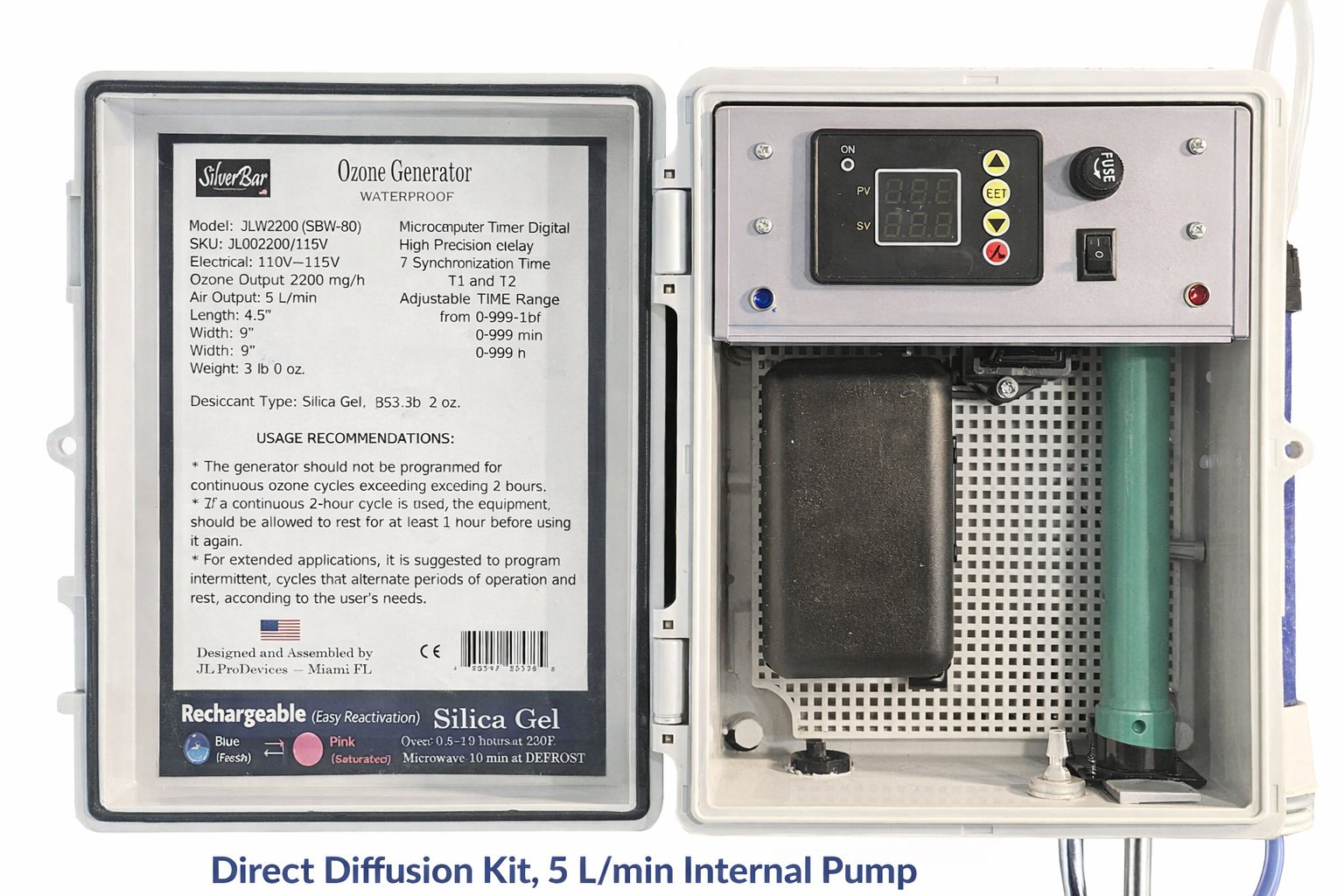

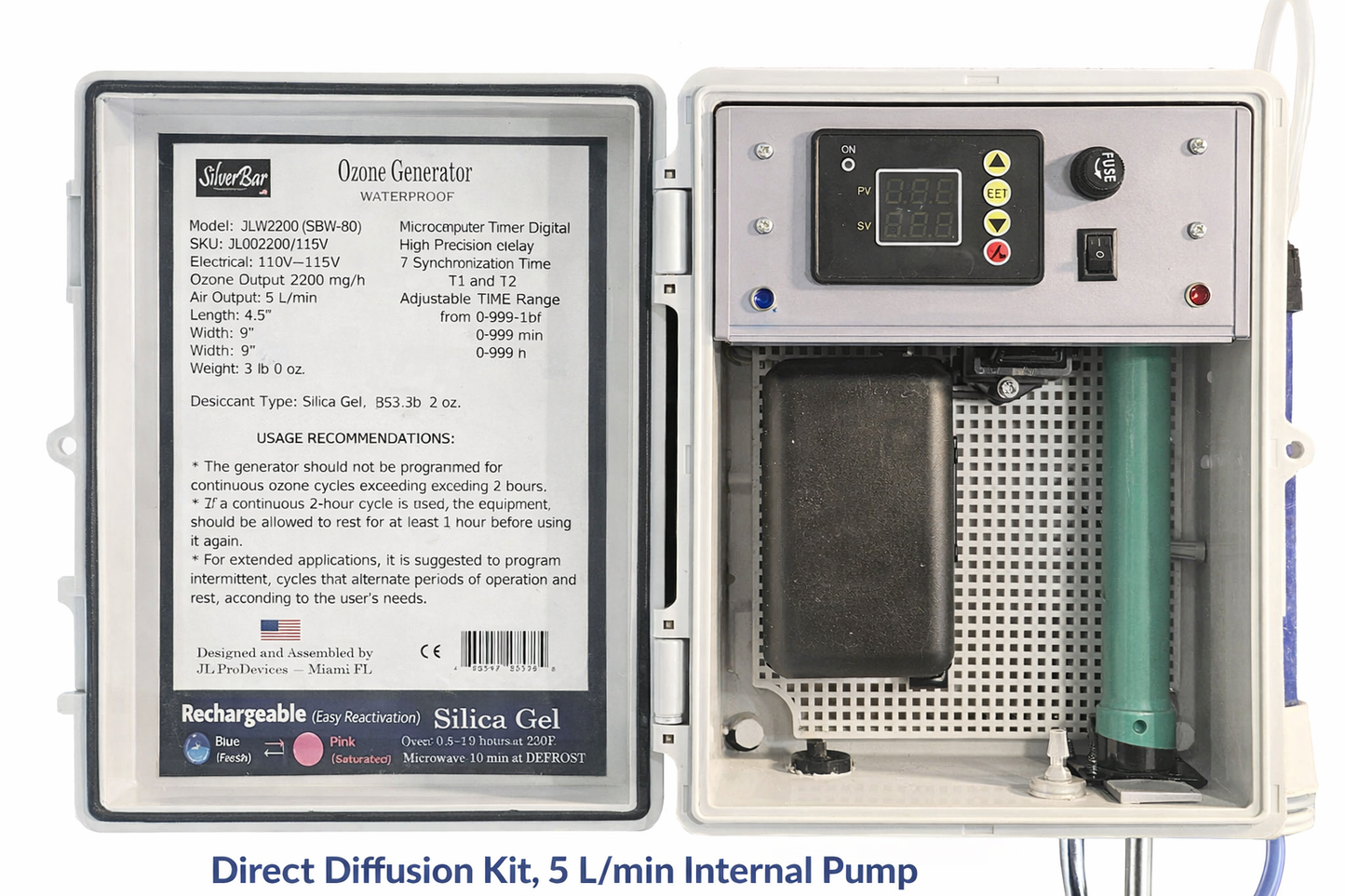

Direct Diffusion Kit — Generator + Internal Pump + Diffusers

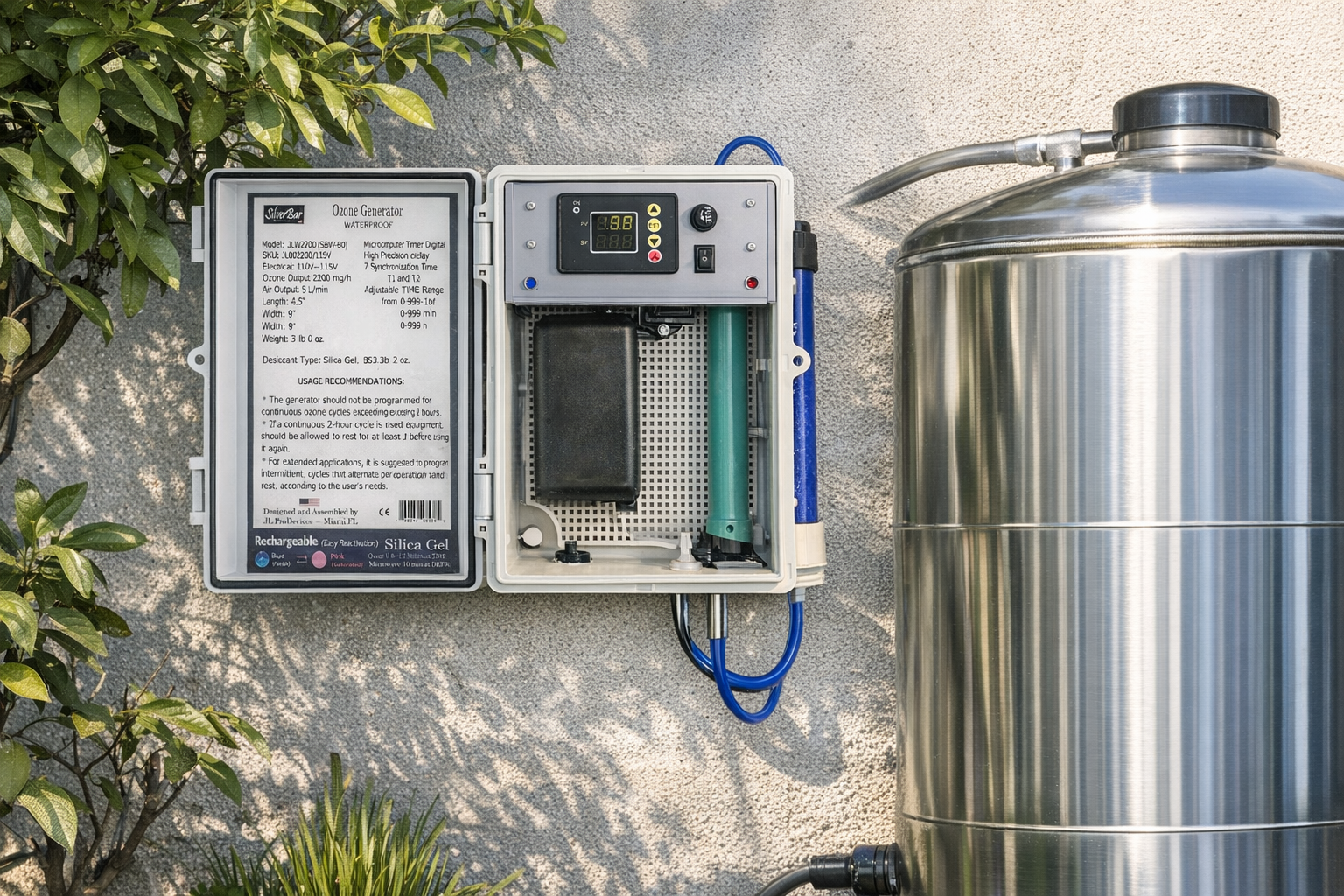

Applications: Tanks, Cisterns, Aquariums, or Systems Without Hydraulic Return

Note: The Direct Diffusion Kit is designed for simple, standalone operation, eliminating the need for venturi injectors or complex plumbing. With its built-in air pump, ozone is delivered directly into the water through diffusers.

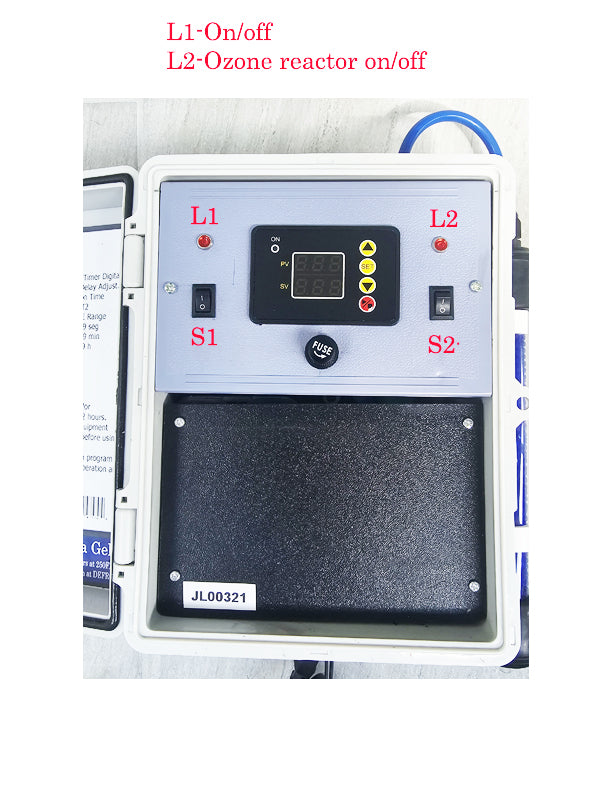

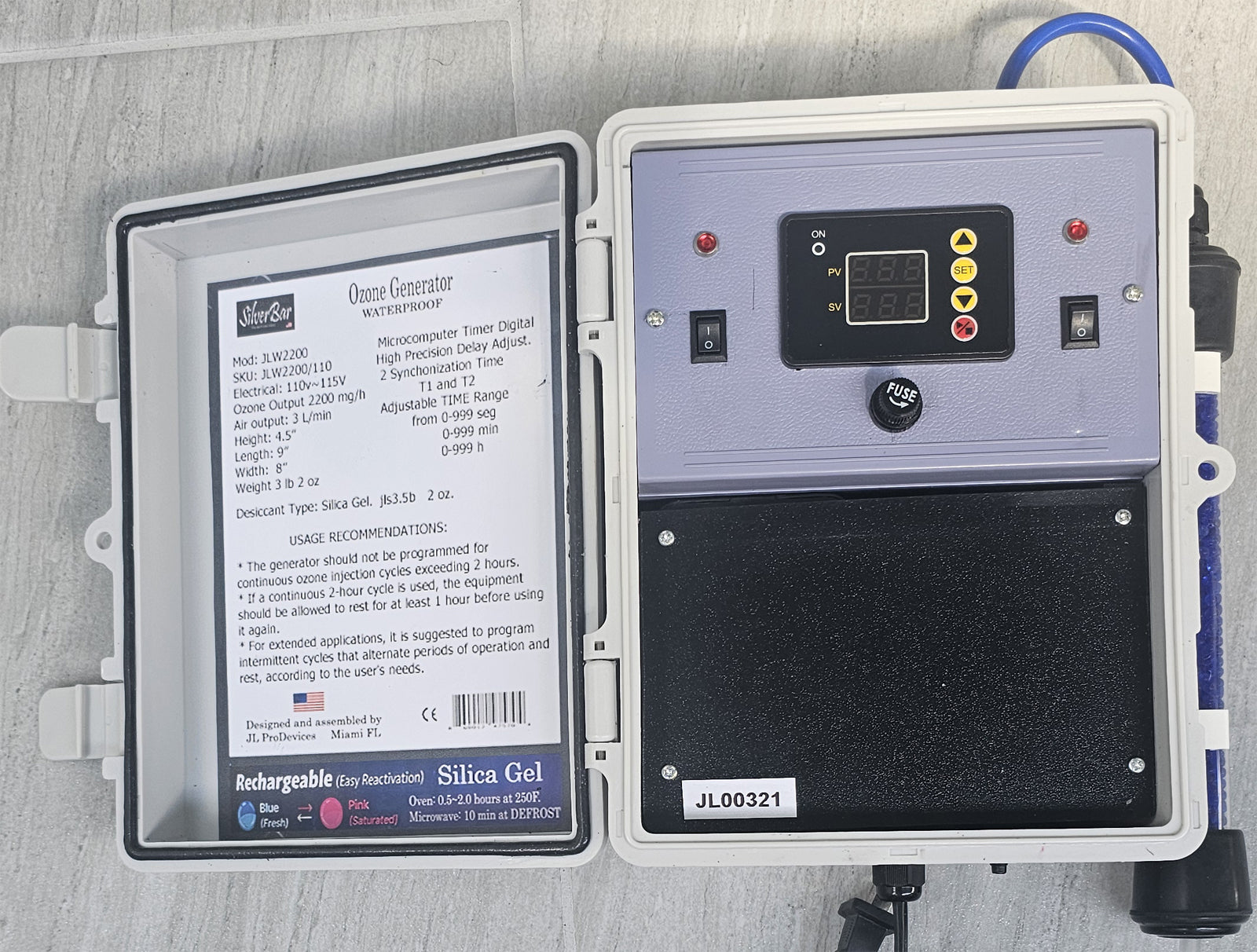

9. Digital Timer Control (Microcomputer)
A simple, stable, and reliable programming system.
Factory Default: 8 cycles per day / 1 hour per cycle.
Enables: shorter cycles, nighttime operation, intensive treatments, and factory-customizable programming at no additional cost.
Precise Control = Greater Efficiency + Longer System Lifespan

¿Por qué elegir el JLW-2200?

• Reduce hasta un 80% el uso de cloro
• Instalación modular adaptable a tu sistema hidráulico
• Control programable con timer digital incluido
• Garantía con reemplazo de componentes
• Soporte técnico directo del fabricante

Final Summary

The JLW-2200 is a complete professional system for residential and support applications. Includes: 2200 mg/h Ozone Generation, Air Drying System, Venturi Injection (depending on configuration), Programmable Digital Control, Modular Kit Design, and Practical Field Installation Guides.

Ideal for: Spas and Hot Tubs, Residential Pools, and Medium-sized Water Treatment Systems. For higher-volume systems, recommended as a continuous supplementary treatment.

The operation and programming manual is available prior to purchase. Includes a warranty covering component repair and replacement.

Important Note Regarding Manufacturing and Delivery Times
Due to a high volume of orders—and because this equipment is frequently manufactured according to custom specifications—dispatch times may extend to 5 days or more. Once an order is received, we will contact the customer directly to confirm the estimated production and delivery timeline.
