Venturi Fertilizer Injection System with PVC Manifold: Efficiency in Fertigation
The use of Venturi fertigation systems is revolutionizing irrigation management in crops, orchards, and gardens. These devices harness water pressure to inject nutrient or phytosanitary solutions without the need for electrical equipment. Below you will find a complete guide to our Venturi injection system with PVC manifold, designed to provide a uniform and controlled supply of fertilizers.
What Is a Venturi Injector and How Does It Work?
A Venturi injector is a device composed of two funnels joined at their narrowest point. When water passes through this "throat", its speed increases, generating negative pressure that creates a vacuum. This vacuum draws in the desired solution — fertilizer, pesticide, or pH corrector — and mixes it with the irrigation water. This hydrodynamic principle works across a wide range of pressures and requires no electrical power, making it ideal for urban gardens or areas without access to electricity.
The primary use of Venturi injectors is fertigation: the technique of dissolving nutrients in irrigation water to distribute them uniformly through the same water network. The vacuum generated by the Venturi ensures a consistent fertilizer mixture throughout the entire pipeline.
They are also used for pest control through precise injection of phytosanitary solutions, for correcting pH and preventing dripper clogging, and even for oxygenating pond water.
Models and System Specifications
Our system is custom-built using high-resistance, high-quality PVC manifolds. It is available in three sizes to accommodate different flow rates and irrigation scales:
| Model | Connection (PVC) | Recommended Working Pressure | Required Water Flow | Fertilizer Suction Flow | Suggested Application |
|---|---|---|---|---|---|
| 1/2" | PVC 1/2" | 1 – 6 bar (15–90 psi) | 0.5 – 2.5 m³/h (8–40 L/min) | 0.2 – 2 L/min (adjustable) | Small orchards, gardens, and residential areas |
| 3/4" | PVC 3/4" | 1 – 6 bar (15–90 psi) | 1 – 4 m³/h (16–65 L/min) | 0.5 – 3 L/min (adjustable) | Medium greenhouses and vegetable crops |
| 1" | PVC 1" | 1 – 6 bar (15–90 psi) | 2 – 6 m³/h (33–100 L/min) | 1 – 4 L/min (adjustable) | Large-scale crops and agricultural irrigation |
Included Components

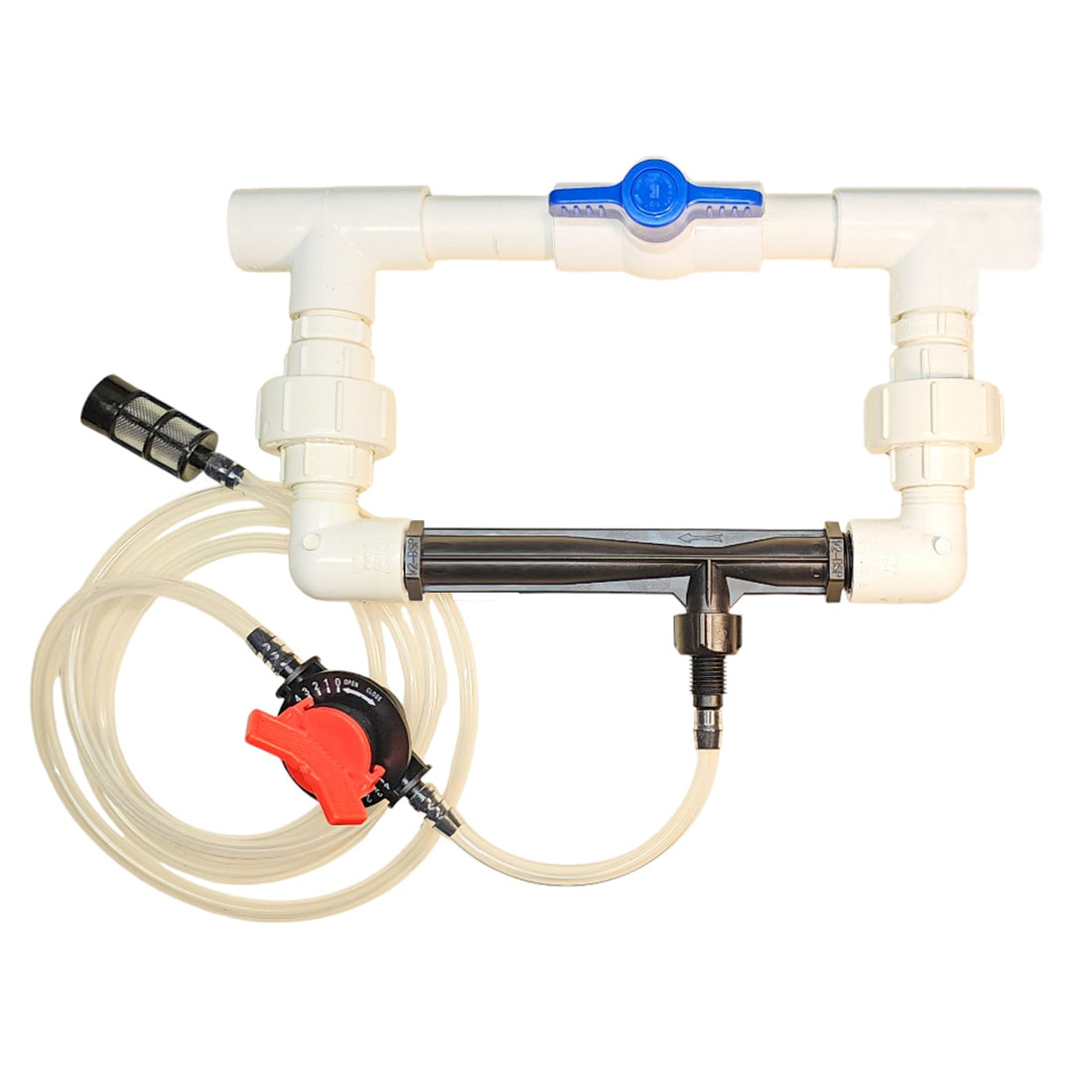

- PVC manifold with regulation valve and bypass in the selected size (1/2", 3/4", or 1").
- Silicone tube resistant to fertilizer suction.
- 1/4" needle valve for precise control of the suction flow.
- Protective filter to prevent the entry of impurities.
Additional Features
- High-resistance PVC with long service life.
- Made to order, ensuring freshness and quality in every unit.
- Operates via the Venturi effect — no pumps or electricity required.
- Compatible with drip, sprinkler, and micro-sprinkler irrigation systems.
Key Benefits of the Venturi System
Efficient fertilizer application: Fertigation combines irrigation and fertilization in a single step. The Venturi injector introduces nutrients directly into the water flow, improving nutrient assimilation and crop yield. The vacuum ensures a uniform fertilizer mixture throughout the entire pipeline.
No electrical power required: By using only water pressure to create a vacuum and draw in fertilizer, the system is ideal for remote locations or off-grid installations.
Saves water, fertilizer, and labor: Controlled injection prevents waste and reduces input use, resulting in both economic and ecological savings. Combining irrigation and fertilization also reduces application time significantly.
Low maintenance: The built-in filter prevents solid particles from entering the system and clogging the injector. The compact, robust PVC design resists the most commonly used agricultural chemicals.
Versatile applications: Suitable for small home gardens as well as large commercial crops. Beyond fertigation, it is useful for pest treatment, pH adjustment, and preventing dripper clogging.
Installation and Usage Tips
- Install in a bypass line: To better regulate flow and avoid restricting the main line, install the injector in a bypass with inlet and outlet valves.
- Choose the right size: A Venturi that is too large will not generate enough vacuum; one that is too small will restrict system flow. When in doubt, choose a smaller size and regulate it with the bypass valve.
- Maintain adequate pressure: For the Venturi to work, there must be a pressure difference between the inlet and outlet. If pressures equalize, suction stops. Maintain the minimum recommended pressure (generally 1 bar) at the outlet to ensure consistent suction.
- Clean the filter regularly: Periodically inspect and clean the filter to prevent clogging. This extends the system's service life and maintains a constant flow rate.
- Pesticide precautions: Do not mix pesticides and fertilizers in the same solution, as they may react with each other. Apply each product separately according to the manufacturer's instructions.
Conclusion
The Venturi Fertilizer Injection System with PVC Manifold combines efficiency, simplicity, and versatility. By harnessing the Venturi principle, it allows precise dosing of nutrients, pH correctors, or pesticides without additional equipment or electricity. With three available sizes and high-quality components, it is a smart investment that improves crop performance at any scale.
Ready to optimize your irrigation and fertilization? Explore our models and choose the size that best fits your system. With proper installation, you will enjoy uniform fertigation, resource savings, and healthier crops.
