Common Problems When Installing a Venturi Tube — And How to Fix Them
The Venturi injector is one of the most reliable and cost-effective tools for fertigation, ozone injection, and chemical dosing in water systems. However, improper installation or sizing can lead to frustrating performance issues. In this guide, we cover the most common problems users encounter when installing a Venturi tube and how to solve them — plus a detailed comparison between Venturi injection and diffuser stone (air stone) injection.
Most Common Venturi Installation Problems
1. No Suction or Weak Suction
Cause: This is the most frequent issue. It occurs when there is insufficient pressure differential between the Venturi inlet and outlet.
- The outlet pressure is too close to the inlet pressure, preventing vacuum formation.
- The bypass valve is not sufficiently restricting flow through the Venturi.
- The Venturi size is too large for the available flow rate.
Solution: Increase the pressure drop across the Venturi by partially closing the outlet valve or bypass valve. Ensure the inlet pressure is at least 1 bar (15 psi) higher than the outlet. If the problem persists, downsize to a smaller Venturi model.
2. Air Bubbles or Inconsistent Flow
Cause: Air entering the suction line or a loose fitting on the suction port.
- The suction tube is not fully submerged in the solution tank.
- Fittings on the suction port are not airtight.
- The suction line is too long or has sharp bends, creating air pockets.
Solution: Check all suction line connections and tighten fittings. Keep the suction tube fully submerged and minimize bends. Use reinforced silicone tubing rated for suction applications.
3. Venturi Clogging
Cause: Solid particles from the fertilizer solution or water supply blocking the narrow throat of the Venturi.
Solution: Always install a filter on the suction line before the Venturi inlet. Use pre-dissolved fertilizers and avoid injecting undissolved granules. Clean the Venturi throat periodically by flushing with clean water.
4. Incorrect Sizing
Cause: Choosing a Venturi that is too large or too small for the system's flow rate.
- Too large: insufficient vacuum, no suction.
- Too small: excessive pressure drop, restricted main line flow.
Solution: Match the Venturi size to your system's flow rate using the manufacturer's specifications. When in doubt, choose a smaller size and regulate with the bypass valve. A 1/2" Venturi is ideal for flows of 8–40 L/min; 3/4" for 16–65 L/min; and 1" for 33–100 L/min.
5. Chemical Compatibility Issues
Cause: Using fertilizers or chemicals that react with PVC or the silicone suction tube.
Solution: Check chemical compatibility before use. Most standard fertilizers and pH correctors are compatible with PVC and silicone. Avoid highly concentrated acids or solvents unless using chemically resistant materials.
6. Venturi Installed in the Wrong Direction
Cause: The Venturi has a specific flow direction (inlet to outlet). Installing it backwards prevents vacuum generation.
Solution: Always check the flow direction arrow marked on the Venturi body before installation. The wider end is the inlet; the narrower end connects to the outlet/downstream side.
Venturi Injection vs. Diffuser Stone (Air Stone) Injection
Both methods are used to dissolve gases (such as ozone or oxygen) into water, but they work very differently. Understanding the differences helps you choose the right solution for your application.
| Feature | Venturi Injector | Diffuser Stone (Air Stone) |
|---|---|---|
| Operating principle | Uses water pressure differential to create a vacuum and draw in gas | Pumps gas through a porous stone to create fine bubbles |
| Power required | No electricity — uses existing water pressure | Requires an air pump or compressor |
| Gas transfer efficiency | High — gas is injected under pressure and mixed inline | Moderate — depends on bubble size and contact time |
| Ozone dissolution rate | Very high (up to 90%+ with contact tank) | Lower (typically 50–70%) |
| Maintenance | Low — occasional filter cleaning | Higher — stones clog and degrade over time |
| Installation complexity | Moderate — requires bypass plumbing | Simple — drop stone into tank or pipe |
| Best for | Inline systems, pressurized pipes, fertigation, ozone injection | Open tanks, aquariums, ponds, low-pressure systems |
| Cost | Low upfront, minimal operating cost | Low upfront, recurring stone replacement cost |
| Bubble size | Micro-bubbles created by turbulence | Fine bubbles (size depends on stone porosity) |
| Scalability | Easily scalable with larger Venturi sizes | Limited — requires more stones for larger volumes |
Which Method Should You Choose?
The right choice depends on your specific application:
- Choose a Venturi injector if you have a pressurized water system, need high gas dissolution efficiency, want a low-maintenance solution, or are injecting into a pipeline (fertigation, ozone water treatment, chemical dosing).
- Choose a diffuser stone if you are working with open tanks or aquariums, have a low-pressure or gravity-fed system, or need a simple, low-cost setup for aeration or light ozone treatment.
For most professional water treatment and fertigation applications, the Venturi injector outperforms the diffuser stone in efficiency, reliability, and long-term cost-effectiveness.
Pro Tips for a Successful Venturi Installation

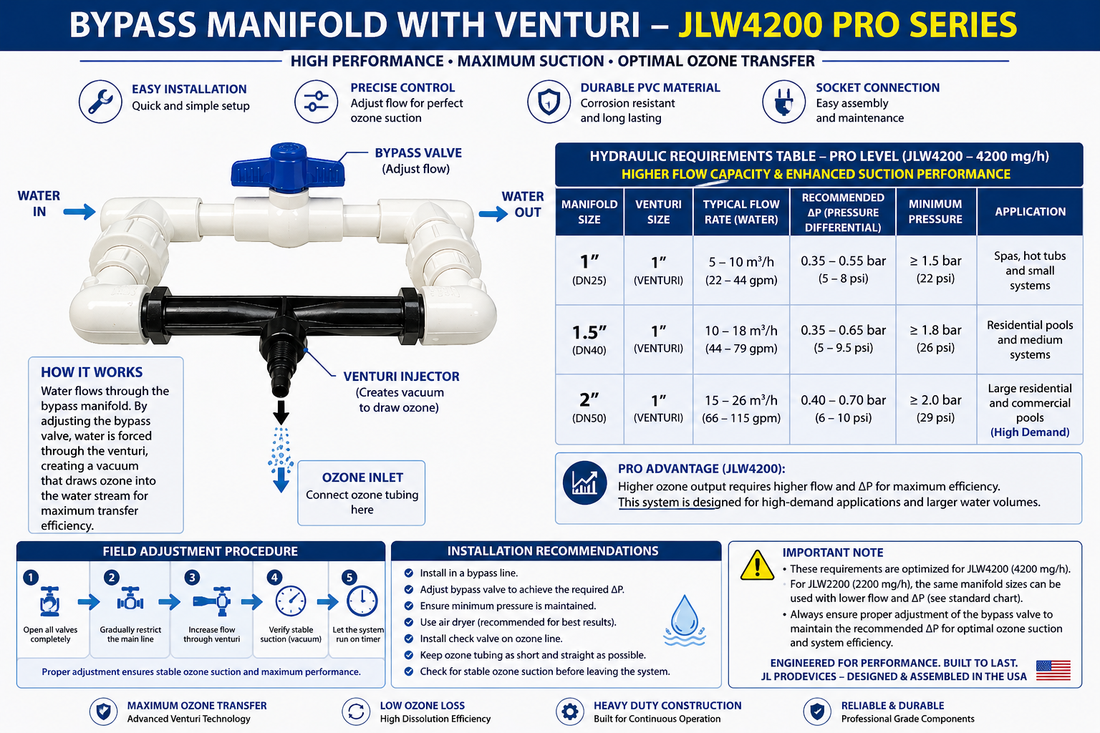

- Always install the Venturi in a bypass line, not directly in the main line, to allow flow regulation without shutting down the system.
- Use a pressure gauge at the inlet and outlet to monitor the pressure differential during commissioning.
- Install a check valve on the suction port to prevent backflow of water into the solution tank when the system is off.
- Prime the suction line with liquid before startup to eliminate air locks.
- For ozone injection, always use ozone-resistant materials (PVDF, stainless steel, or ozone-grade silicone) on the suction side.
Conclusion
A properly installed Venturi injector is one of the most efficient and reliable tools for gas and liquid injection in water systems. By understanding the common installation pitfalls and how Venturi injection compares to diffuser stone technology, you can make informed decisions and get the best performance from your system.
Have questions about sizing or installation? Contact our team — we're happy to help you find the right solution for your application.
